JM-3D – The Smallest Home Oxygen Concentrator 3- Liter-Minute By Jumao

Short Description:

It is a wise choice to use this JM-3D Ni portable medical oxygen machine in the home. Its smoothest lines design , Clear black and white color contrast , Super intelligent control system, small body with strong heart power, is the most like home appliance medical grade oxygen generator . To provide the most relaxed and reliable use experience for users.

✭The double muffler design

Ultra quiet allows you to use it without any uncomfortable

✭Smallest & Technological element design

Save your transport cost and Take up less space at home


Read & Operate it easily

Product Detail

Product Tags


Model  JM-3D Ni
Display Usage Real-Time Monitoring Display
Average Power Consumption 250 Watts
Input Voltage /  Frequency AC 120 V ± 10% , / 60 Hz, AC 220 V ± 10% / 50hz
Sound level ≤38 dB(A) Typical
Outlet Pressure 5.5 Psi (38kPa)
Liter Flow 0.5 To 5 L/Min.
Oxygen Concentration 93%±3% @ 3L/Min.   50%~90% @ 3.5 L/Min.~5 L/Min.
Operating Altitude 0 To 6,000 (0 To 1,828 m)
Operating Humidity Up To 95% Relative Humidity
Operating Temperature 41℉ To 104℉ (5℃ To 40℃)
Required Maintenance(Filters) Air Inlet Filter Clean Every 2 Weeks
Compressor Intake Filter Change Every  6 Months
Dimensions(Machine) 13*9*17.3 inch  (33*23*44cm)
Dimensions(Carton) 11.8*15.7*19.7 inch  (30*40*50cm)
Weight (Approx) N.W: 22lbs (10kg)   G.W: 26.5lbs (12kg)
Warranty 1 Years - Review Manufacturer's Documentation For Full Warranty Details.


User-Friendly Design

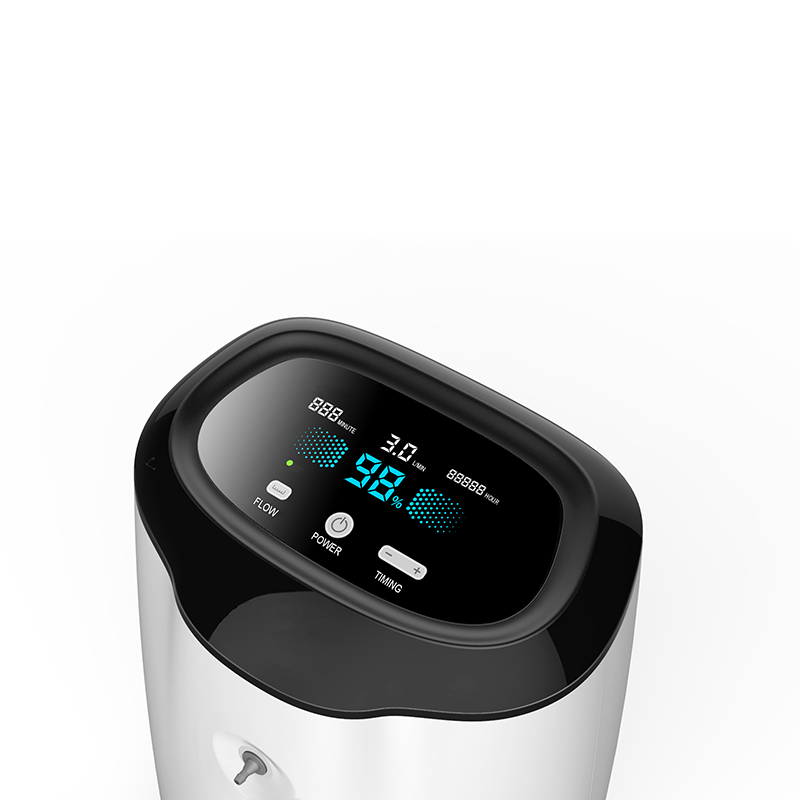

Large touch screen design at the top of the machine, all functional operations can be completed through it. Large text display, sensitive touch, users do not need to bend down or close to the machine to operate, very convenient and friendly to users

Money-Save Better
Small size : save your logistic cost
Lower consumption : Save your power during operation
Durable : Save your maintenance cost.

Quite : Close To The Sound Of Your Sleeping Breathing

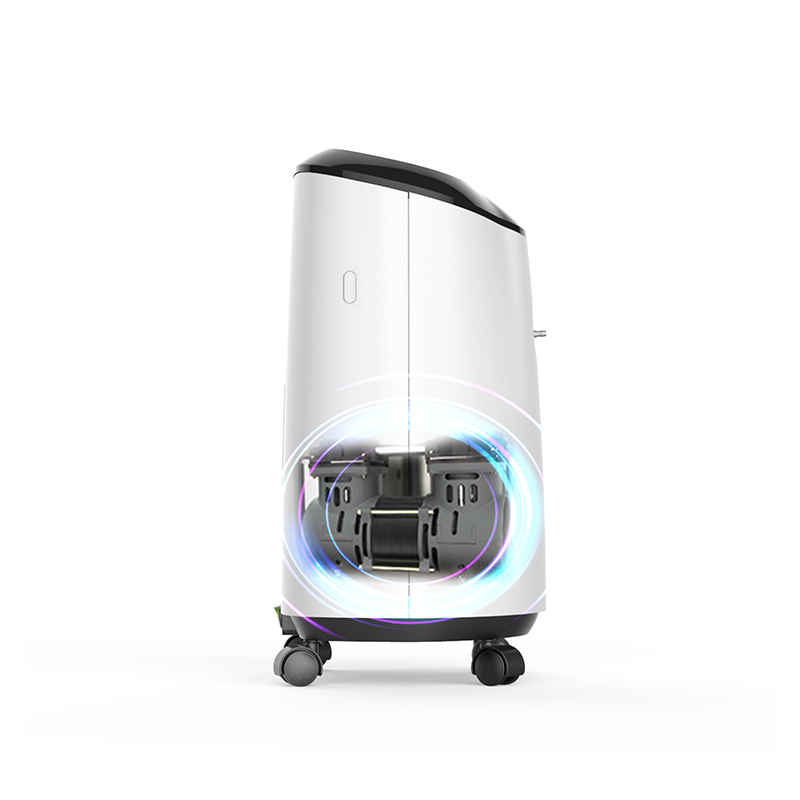

≤38db Quiet .Double muffler design, unique structural air duct design, it makes the machine noise is lower than the library noise, more close to people's breathing sound For people with mild sleep weakness, it is the best choice


1.Are You The Manufacturer ? Can You Export It Directly ?
Yes ,we are manufacturer with around 70,000 ㎡ production site.
We have been exported the goods to oversea markets since 2002. we can provide most documentation including ISO9001, ISO13485, FCS, CE, FDA, Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

2.If This Small Machine Meets The Standard Of The Medical Device Requirements?
Absolutely ! We are a medical equipment manufacturer, and only manufacture products that meet the requirements of medical equipment. All our products have test reports from medical testing institutions .

3.Who Can Use This Machine ?
It is an ideal choice for anyone looking for easy and effective oxygen therapy at home. As such, it is suitable for a range of conditions that affect the lungs including:
Chronic obstructive Pulmonary Disease (COPD) / Emphysema / Refractory Asthma
Chronic Bronchitis / Cystic Fibrosis / Musculoskeletal Disorders with Respiratory Weakness
Severe Lung Scarring / Other conditions affecting the lungs/breathing that require supplemental oxygen

Product Display

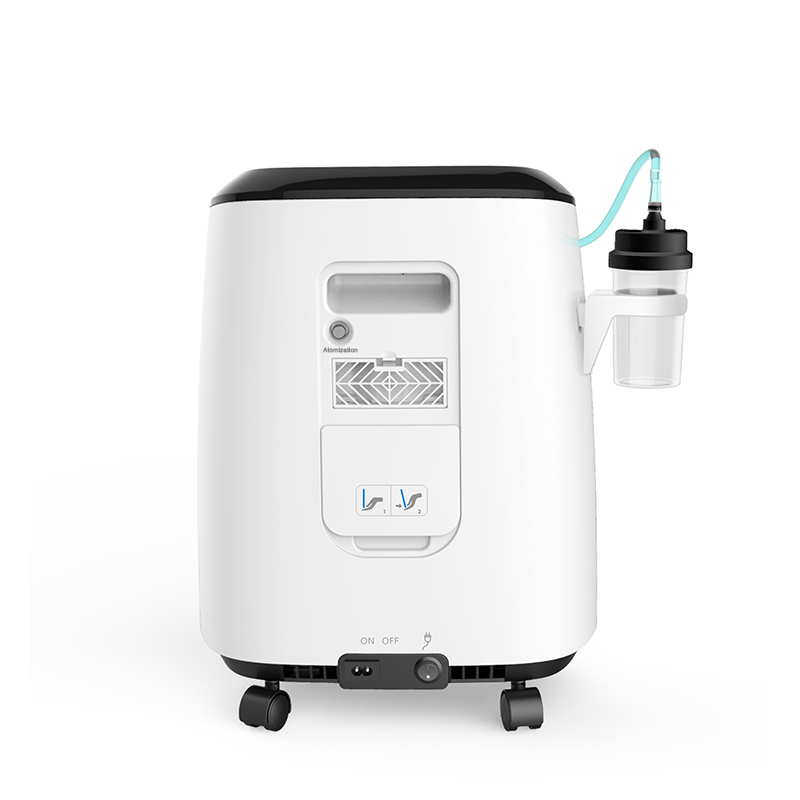

JM-3D (2)
JM-3D (3)
JM-3D (4)
