Refill Oxygen system At Home With Oxygen Cylinder by Jumao

Short Description:

● Time-saving – no more waiting for your cylinders to be delivered

● Money-saving –Compatible with ANY oxygen concentrator

● Use-friendly – One- Key Operate ,can be placed and used anywhere

● Especially ideal for those with limited or impaired mobility

● Outputted oxygen is >90% pure

● Offers a convenient, cost-effective alternative to oxygen concentrators

● Compatible with a variety of oxygen cylinder sizes

Product Detail

Product Tags

Refill Oxygen system At Home With Oxygen Cylinder by Jumao

The Oxygen filling system provides an unlimited, refillable ambulatory oxygen supply for users to provide greater mobility and increased independence than traditional oxygen modalities.It is a perfect economical way for individuals to easily refill their own smaller, portable oxygen tanks and cylinders at home! And It is designed to fit and operate with ANY concentrators .It automatically shuts off once the cylinder is full, and LED lights on the top of the station will indicate a full cylinder. Users can still breathes from continuous flow oxygen concentrator while filling oxygen tank cylinder

Electrical Requirements:

120 VAC, 60 Hz, 2.0 Amps

Power Consumption:

120 Watts

Inlet Pressure Rating:

0 - 13.8MPA

Oxygen Flow (while filling cylinders):

0 ~ 8 LPM Adjustable

Oxygen Input:

0~2 LPM

Cylinder Fill Time (avg.)


75 min.


125 min.

Cylinder Capacity


170 liters


255 liters

Cylinder Weight


3.5 lbs.


4.8 lbs.

Refilling machine:

19.6" x 7.7"H x 8.6"


27.5 lbs.

Limited Warranty

Refilling machine

3-year (or 5,000-hours) parts and labor on internal-wear components and control-panel components.

Homefill Cylinders:

1 year

Ready Rack:

1 year


1)The Smallest size and lightest weight
Compact size: 19.6" x 7.7"H x 8.6"
Lightweight: 27.5lbs
Discrete:individual oxygen concentrator, oxygen filling machine, cylinder
Can be placed any where in the home or on the trip

2) Easy to use and take along
Connections: Connect your cylinder securely with the Refill’s custom-designed push-click connector.
Operations: Once connected, simply press the ‘ON/OFF’ button
Indicators: It automatically shuts off once the cylinder is full, and LED lights on the top of the station will indicate a full cylinder.
Carry around: Instead of having to lug around a heavy concentrator and all of its attachments from room to room, this oxygen fill system allows the user to have the lightweight portability of a small oxygen tank in a carry bag or cart while still benefiting from the convenience of a continuous supply of oxygen.

3)Save your money and time
Save money: Virtually eliminates the high service costs of frequent delivery of cylinders or liquid oxygen without sacrificing the user's oxygen care.For those who rely on compressed oxygen therapy for their survival or comfort. On the other hand,The filling machine can be used in conjunction with any concentrator in your home.You don’t need to buy another new oxygen concentrator to match the filling machine.
Save time: Fill the oxygen cylinders at home instead of having to go to an office to have them filled. For who may live a distance from a city, town, or an oxygen delivery service, the Home fill System will soothe the worries about running out of oxygen.

4)Fill up safely
With its user-friendly design and Five safety protection measures. Your cylinders will be filled safely, quickly and conveniently in your own home.

5)Multi - adjustment setting design, suitable for a variety of occasions
Cylinder conserve settings are 0、 0.5LPM、1LPM 、1.5LPM、2LPM、2.5LPM、3LPM、4LPM、5LPM、6LPM、7LPM、8LPM,total 12 settings for your choice
Outputted oxygen is >90% pure

6)Compatible with ANY oxygen concentrator (@≥90% & ≥2L/min.)
We are very considerate to provide open connection, any qualified medical oxygen generator in your hand can be connected to our oxygen filling machine, to provide convenience and save costs for you .

7)Multiple cylinder sizes available
ML4 / ML6 / M9

8)Provides greater freedom and independence by filling oxygen cylinders for ambulatory patients at home or on the trip
You only need one movable oxygen concentrator then connected with the filling machine to fill the oxygen at any time and place.

9)JUMAO oxygen concentrators and portable oxygen cylinders sold separately


1.Are you the manufacturer ? Can you export it directly ?
Yes ,we are manufacturer with around 70,000 ㎡ production site.
We have been exported the goods to oversea markets since 2002. we can provide most documentation including ISO9001, ISO13485, FCS, CE, FDA, Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

2.What is the average lead time?
Our daily production capacity is around 300pcs for refill product.
For samples, the lead time is about 1~3 days. For mass production, the lead time is around 10~30 days after receiving the deposit payment. In all cases we will try to accommodate your needs. In most cases we are able to do so.

3.Is the refill machine portable ? Is it safe ?
It is the smallest and lightest one,so you can travel anywhere in a suitcase or in the trunk of your car. Here are five production procedures to ensure the safety of the machine.You can use it without any worry.

4.Can we get the matching cylinder easily ?
Yes , surely ,you can get more cylinders from our factory directly or from our dealers or from market.

5.Is the oxygen outlet of the cylinder fixed or breathable ?
You can choose freely .There are two kinds bottle head valves : direct and breathable.

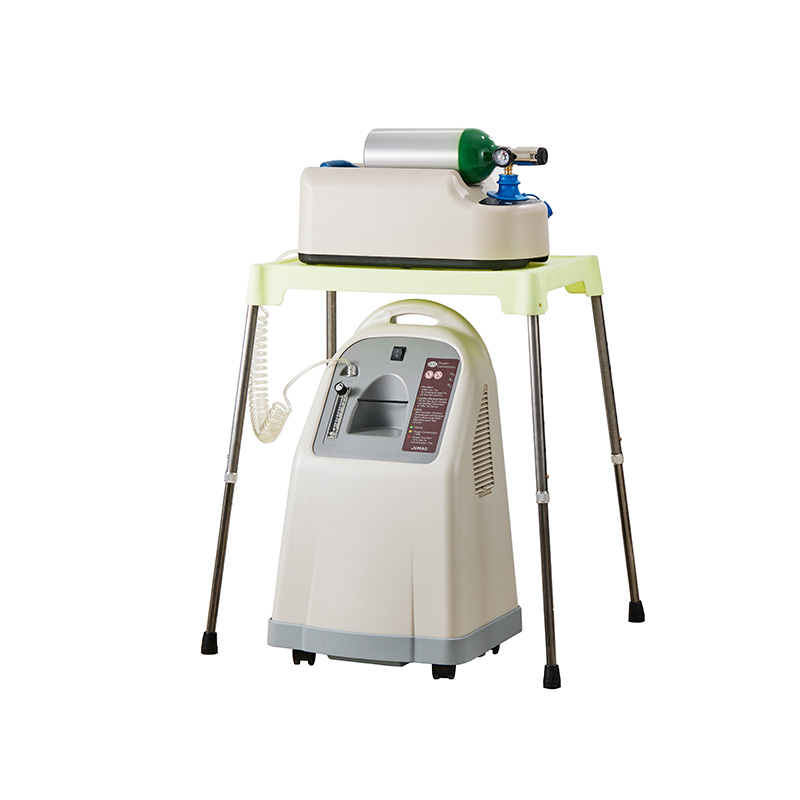

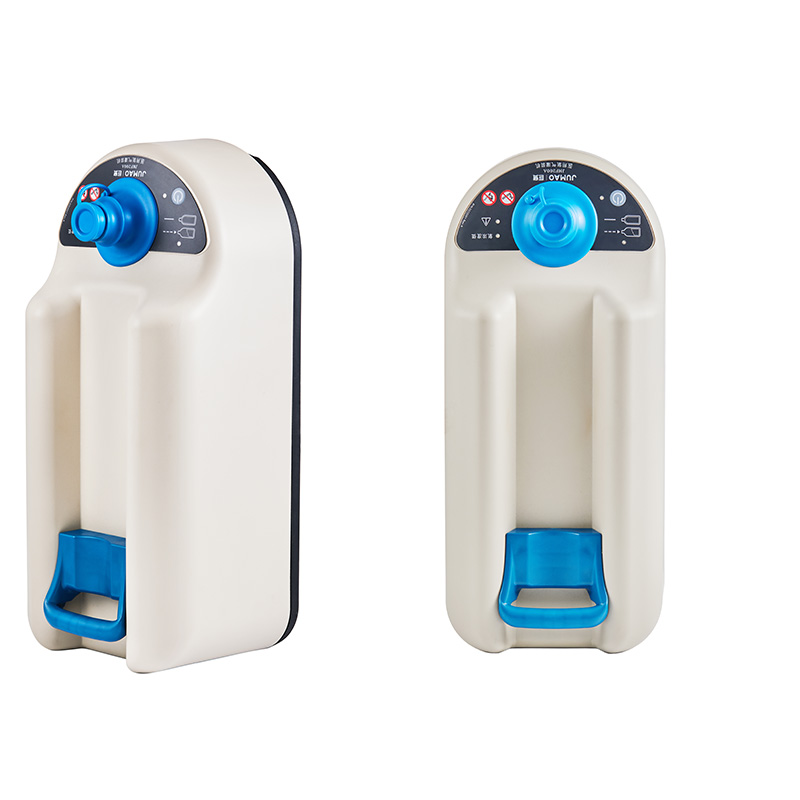

Product Display
