JM-5F Ni – The Warmest Medical Equipment –Home Oxygen Machine 5 LPM From JUMAO Oxygen Company

Short Description:

The smooth appearance of the linear arc, the black curved large touch screen control interface, the design is inspired by Bentley. We very much expect users to feel that they are interacting with a super cute “penguin” when using this device, their emotions are relaxed and their hearts are warm. Even if this is a real medical grade Oxygen Making Machine.

Arc Line Design: Warm, Bright

The most warm design style, let you can’t help but love

Light Sensitive Screen Design

Feel free to choose the brightness of the screen

High Inlet Position

 Maintain The Cleanliness Of The Incoming Air

Product Detail

Product Tags


Working Principle PSA
Average Power Consumption 360 Watts
Input Voltage /  Frequency AC120 V ± 10% / 60 Hz,  AC220 V ± 10% / 50hz
Ac Power Cord Length(Approx) 8 Feet ( 2.5m )
Sound level ≤43 dB(A)
Outlet Pressure 5.5 PSI (38kPa)
Liter Flow 0.5 To 5 L/Min.
Oxygen Concentration (at 5 lpm) 93%±3% @ 5L/Min.
OPI (Oxygen Percentage indicator) Alarm Levels Low Oxygen 82% (Yellow), Very Low Oxygen 73%(Red)
Operating Altitude 0 To 6,000 (0 To 1,828 m)
Operating Humidity Up To 95% Relative Humidity
Operating Temperature 41℉ To 104℉ (5℃ To 40℃)
Required Maintenance (Filters) Air Inlet Filter Clean Every 2 Weeks
Compressor Intake Filter Change Every  6 Months
Dimensions(Machine) 16.2*12.2*22.5inch  (41*31*58cm)
Dimensions(Carton) 19*13*26 Inch  (48*38*67cm)
Weight (Approx) N.W: 28lbs (16kg)
G.W: 33lbs (18.5kg)
Warranty 1 Years - Review Manufacturer's Documentation Form Full Warranty Details.

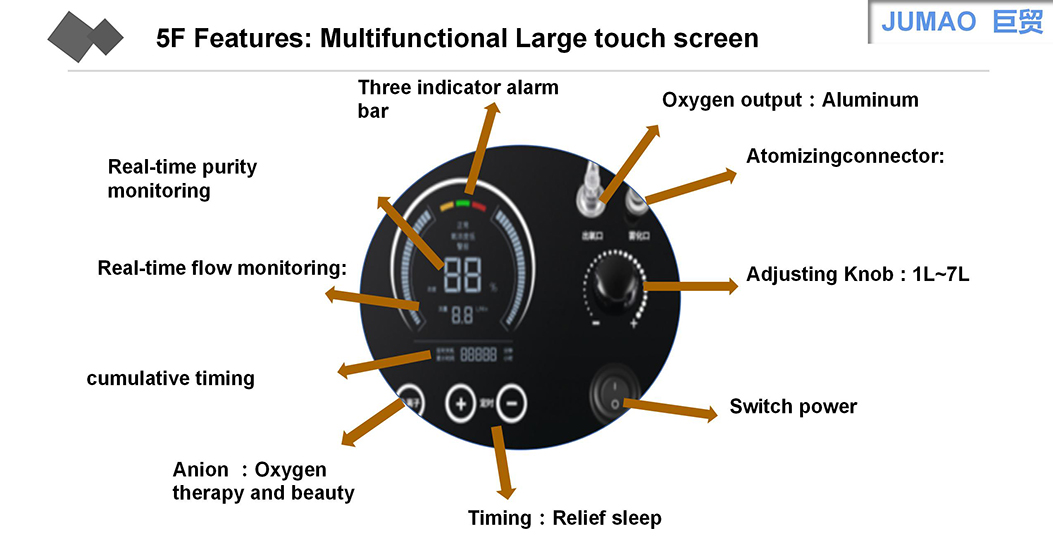

Large Led Screen For Multifunctional Usage
Front operation interface, one interface all functions can be realized, fast and convenient.


Display With Adjustable Brightness
You don't need to stick a screen on it to see what the machine is doing. There is a large LED display, the screen is clear, the text is big enough. The best part is that if you use the machine at night, the light from the normal LED light screen can interfere with your sleep. But the screen brightness of this machine can be adjusted freely. You can choose the brightness that makes you most comfortable.

Double Cavity Noise Isolation Design
The rare dual-cavity design in the market enables all internal components to be placed in their own places, facilitating the stability of the machine in transit and reducing noise.

3300RPM High Speed Cooling Fan
The high-speed cooling fan can quickly dissipate the heat emitted by the machine compressor, effectively delaying the aging speed of machine parts and extending the service life of the machine.

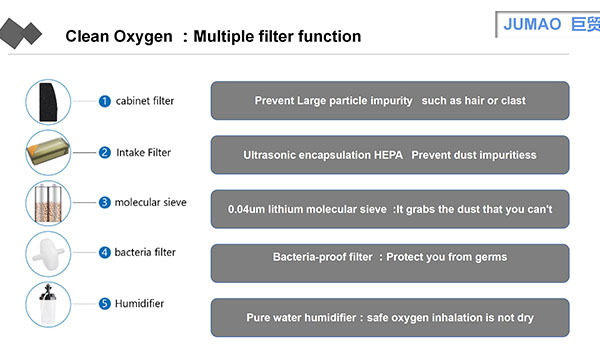

Multiple Functional Filter Ensure You Cleanest Oxygen
Starting with the air and separating out the oxygen, various impurities are filtered multiple times at each stage to ensure that the oxygen that ends up in your body is the cleanest .



1.Are You The Manufacturer ? Can You Export It Directly ?
Yes ,we are manufacturer with around 70,000 ㎡ production site.
We have been exported the goods to oversea markets since 2002. we can provide most documentation including ISO9001, ISO13485, FCS, CE, FDA, Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

2.Can Portable Oxygen Concentrators Be Used With Cpap Or Bipap Devices?
Yes! All capacity is greater than or equal to 5L/Min of JUMAO oxygen concentrators can work out this function . Continuous flow oxygen concentrators are absolutely safe to be used with most sleep apnea devices. But, if you're worried about a specific model of concentrator or CPAP/BiPAP device, discuss your options with your doctor.

3.What Is Your After-Sale Policy ?
1~3 years .Our service center is at Ohio ,USA .
Our after-sales technical support team composed of 10 engineers provides 24 hours online service.

Product Display

5F (5)
